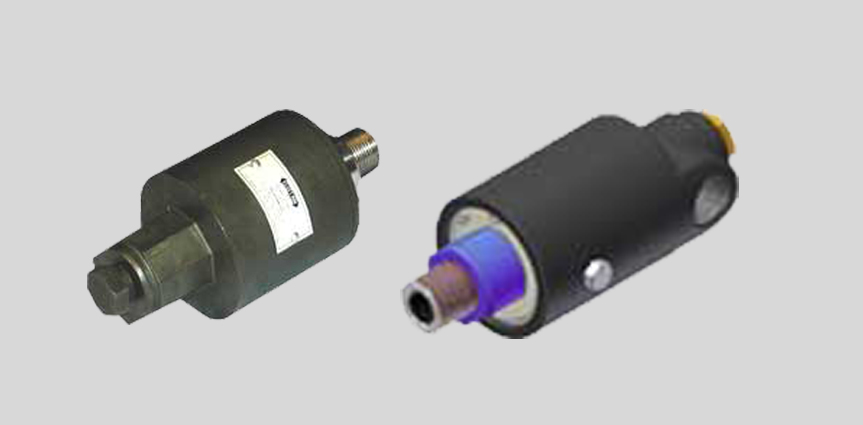

Rotating Union, Rotary Union For Hot Application
We offer rotary union for hot applications. The product offered Rotating Union, Rotary Union Cylinders, Rotating Cylinder this include R-201 Rotary Union, which are high temperature service unions featuring Rotor and Outer body made of temperature resistant steels. These also feature optically flat lapped Tungsten Carbide Seals that are held by 99.99% pure graphite bushing. This allows them to withstand very high temperatures of Thermic fluids. Further, these are available in Mono Flow, Duo Flow as well as with Fixed Siphon and Rotating Siphon options.
Operating Data :
- Max. Speed - 250 RPM
- Max. Temperature - 250° C
- Max. Pressure - 5 Kg./Cm2
- Media - Thermic fluid
- Rotor resting in Bush Bearing
- Balanced Sealing
- Carbon to SS seals
Frequently Asked Questions
A rotating union is a mechanical device that transfers fluid, gas, or media between stationary and rotating components, ensuring continuous flow without leaks during rotation.
They enable seamless fluid transfer in rotating machinery, ensuring consistent operation for heating, cooling, lubrication, or pneumatic power in dynamic applications.
A rotary union for hot applications transfers heat-resistant fluids, such as steam, hot oil, or thermal media, between stationary and rotating components while withstanding high temperatures and pressures.
A rotary union transfers fluids, gases, or media between stationary and rotating parts using precision seals and bearings, ensuring continuous flow, pressure, or signal transmission during rotation without leaks.
Rotary unions are used in CNC machines, printing presses, textile dryers, paper mills, hydraulic equipment, food processing, wind turbines, and injection molding to transfer fluids, gases, or signals during rotation.
