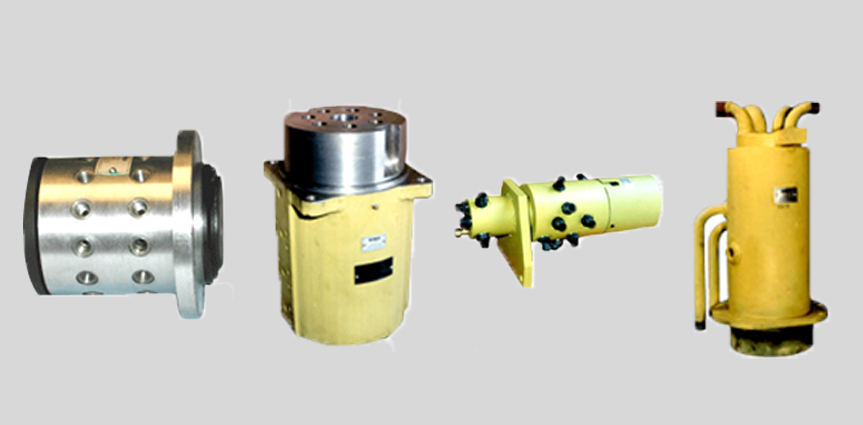

Rotary Swivel Joint, & Single and Multi Passages
The Rotary Swivel Joint, Single Passage and Multi Passage offered by us feature Single and Multi Passage that feature 360 Deg. swivel joints for meeting the demands of various applications in earth moving equipment and cranes. These feature maximum speed of 100 RPM with maximum temperatures of 120 degree C. The available range includes:
R-1700 Rotary Union :
It is a multi passage union that has more than three passages provided with radially sealed, rotor supported between iolite bearings
Operating Data :
- Max. Speed -100 RPM
- Max. Temperature -80 degree C
- Max. Air Pressure -10 Kg/Cm.2
- Max. Hydraulic Pressure - 204 Kg/Cm.2
- Media - Air & Hydraulic Service
Frequently Asked Questions
A rotary swivel joint is a mechanical device that allows the transfer of fluids liquids or gases or electrical signals between stationary and rotating parts without leaks or pressure loss.
A single-passage rotary union allows the transfer of one fluid (liquid, gas, or steam) between stationary and rotating components, typically used in simpler systems with one flow path.
A multi-passage rotary union is designed to transfer multiple fluids or gases through separate channels in a single union, enabling simultaneous flow of different media coolant and air.
