Rotary Union for Steam

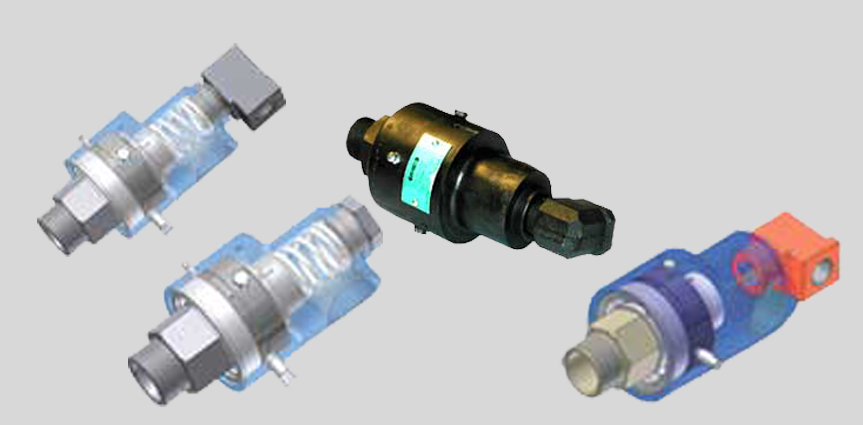

We offer rotary union for meeting the demands of steam services. These rotary union for steam service are made available by us under the name R-150 Rotary Union, which feature rotor resting between one ball bearing and carbon, graphite bush bearing that enables thermal expansion and balanced face seal lapped to optical flatness. Further, these are available in Mono Flow, Duo Flow as well as with Fixed Siphon and Rotating Siphon options.
Operating Data :
- Max. Speed-1500 RPM
- Max. Temperature -180° C
- Max. Pressure- 17 Kg. / Cm2
- Media - Water, Steam and Thermic fluid
- Combination Bearings
- Balanced sealing
- Carbon Graphite to SS sealing
Frequently Asked Questions
A steam rotary union is a specialized device designed to transmit steam or other thermal fluids from a stationary source to a rotating component within mechanical systems. It allows for the efficient transfer of heat without significant loss, leakage, or reduction in fluid flow rate.
A rotary union for steam transfers steam between stationary and rotating components, ensuring efficient flow, heat transfer, and condensation management in high-temperature systems.
They enable seamless steam supply for heating, drying, or power transfer in rotating equipment like rollers, drums, or turbines while handling high temperatures and pressures.
